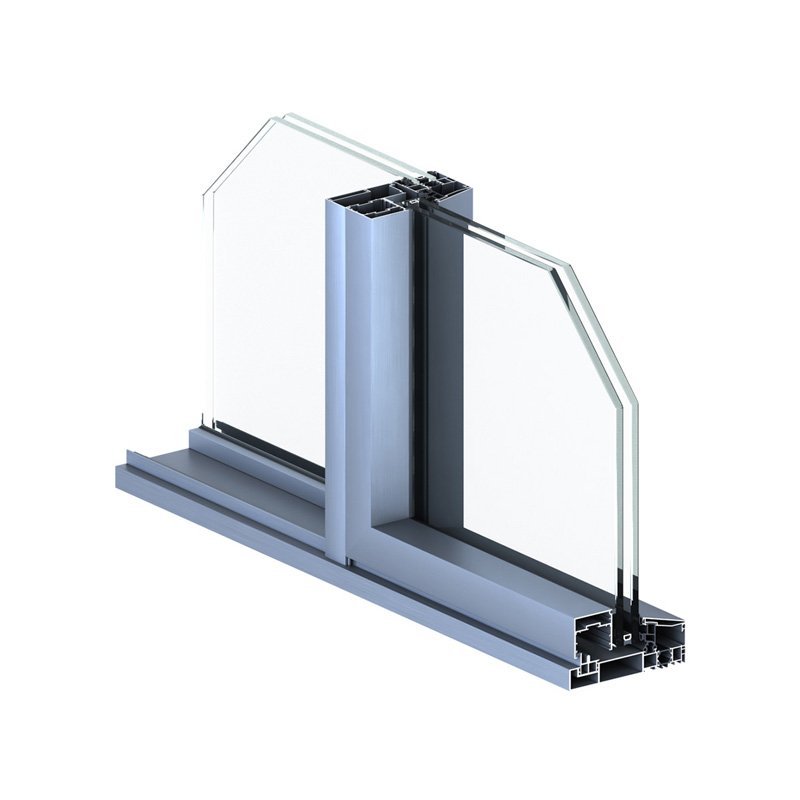

In addition to high water tightness and thermal insulation, it maximizes visual contact with the outside environment with its hidden wing and curved fixed appearance features.

Thanks to DS 72 IW hidden glass spandrel applications, system integrity can be provided in the outside environment and glazing can be done from the outside. At the same time, it provides a high vision area in the interior environment with its 101 mm narrow seam feature.

Watertightness

9A

Wind Resistance

Class 5

Thermal Transmittance

Uf: 3.06 W/m2K / Uw: 1.92 W/m2K

Air Permeability

Class 4
