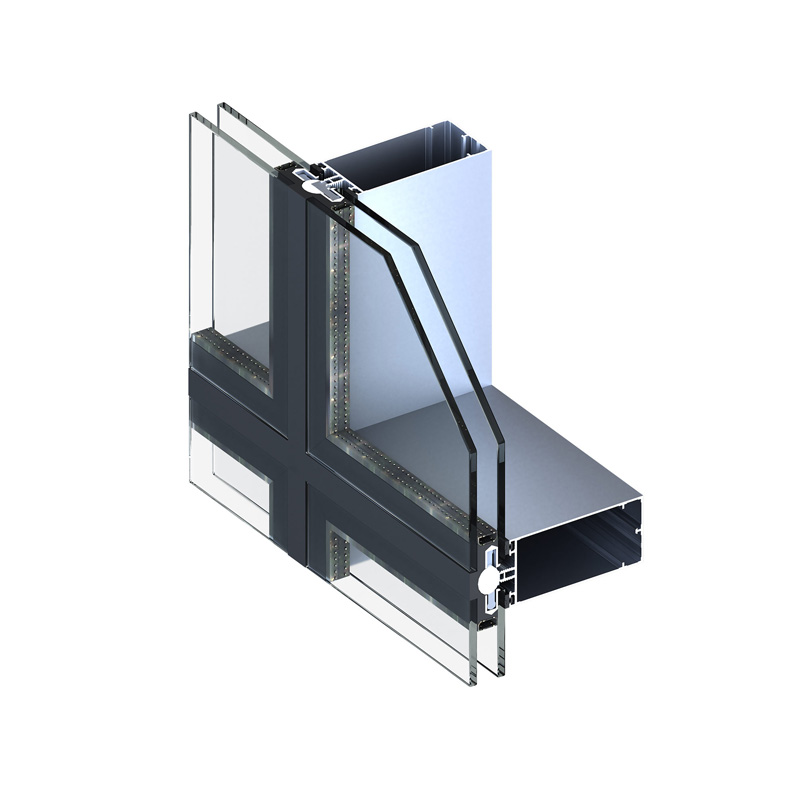

The production of MN50 SC, which adds visual richness to the structure with its glass appearance only, is carried out using a special channeled heat glass spacer bar profile and two-component structural silicone. The production of glass modules, which is no different from the standard bonding process, has been made special with the special connection elements used. The connection elements can be fixed by clamping them to the slot in the glass from the outside and prevented from slipping without any additional process. In this way, glass modules can be assembled on site quickly and efficiently.

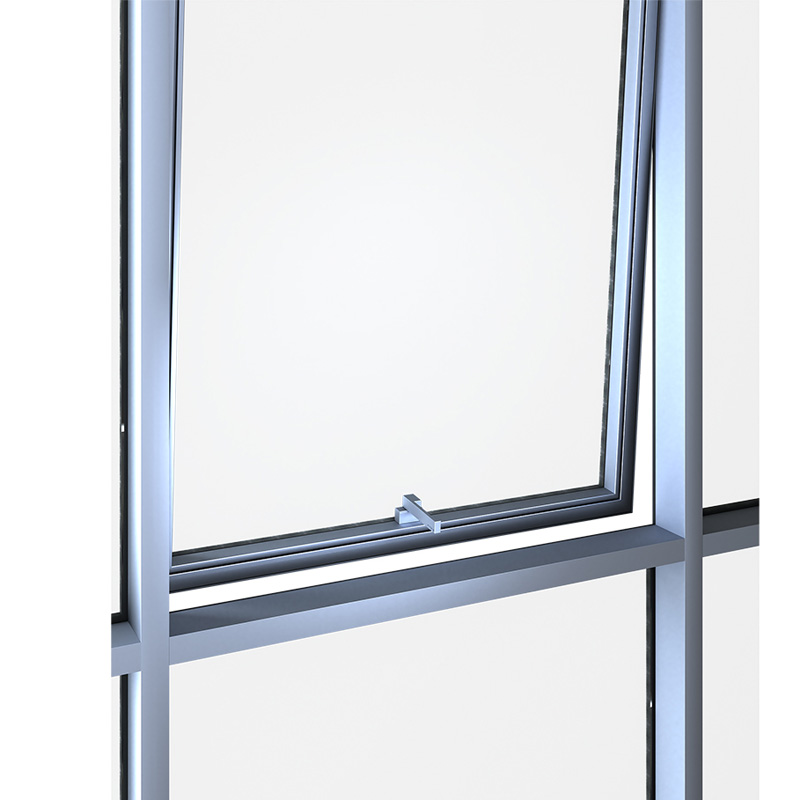

MN 50 SC silicone facade system provides 30-40% less aluminum usage compared to standard cassette silicone systems and also brings ease of assembly. Thanks to the hidden wing that opens outwards in the system, the necessary ventilation process can be done manually or automatically.

Watertightness

R7

Wind Resistance

1200 Pa

Thermal Transmittance

Uw: 1.46 W/m2K/Ug: 1.1 W/m2K

Air Permeability

A4
